Overview
Twin screw extruder can compound and extrude not only the regular plastic, but also the special materials, such as the high performance thermoplastic that is utilized in electronics, aviation, aerospace, and military fields.
Operation Scope
High-temperature materials
Nb-Fe-B magnetic materials with PA and PPS as binders
MIM materials, including wax-based and POM-based, tungsten powder, and iron powder materials
Hot melt adhesives and anti-leakage materials

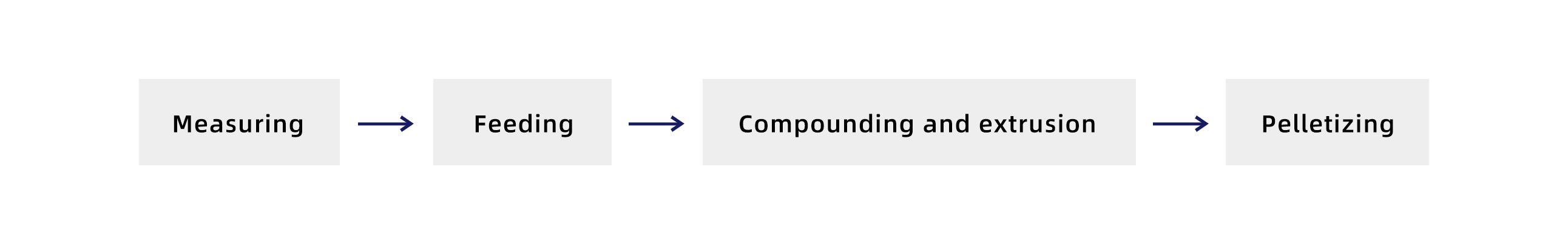

Process solutions
Parameters
| Model | Screw Diameter(mm) | Screw Speed(rpm) | L/D | Motor Power(kW) | Throughput(kg/h) |
| SK26 | 26 | 600/1000 | 40-52 | 18.5/30 | 10-50 |
| SK36 | 36 | 600/900 | 40-52 | 37/35 | 50-200 |
| SK53 | 51 | 600/900 | 40-52 | 110/160 | 200-400 |
| SK63 | 63 | 600/900 | 40-52 | 200/315 | 400-700 |
| SK73 | 73 | 600/900 | 40-52 | 315/450 | 600-1000 |
UHMWPE
Wire and Cable
High Performance Plastics
Engineering Plastics
Biodegradable Plastics
Polymerization Reaction
Recycled Plastics
Polymer Devolatilization
Polyolefin Powder Pelletizing
Masterbatch
Thermoplastic Elastomer
